SPECIFICATIONS

Brand Name: NoEnName_Null

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: GPS Module

Size: AN

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: GPS Module

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembly Category

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: RUSHFPV GNSS MINI M10

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

Choice: yes

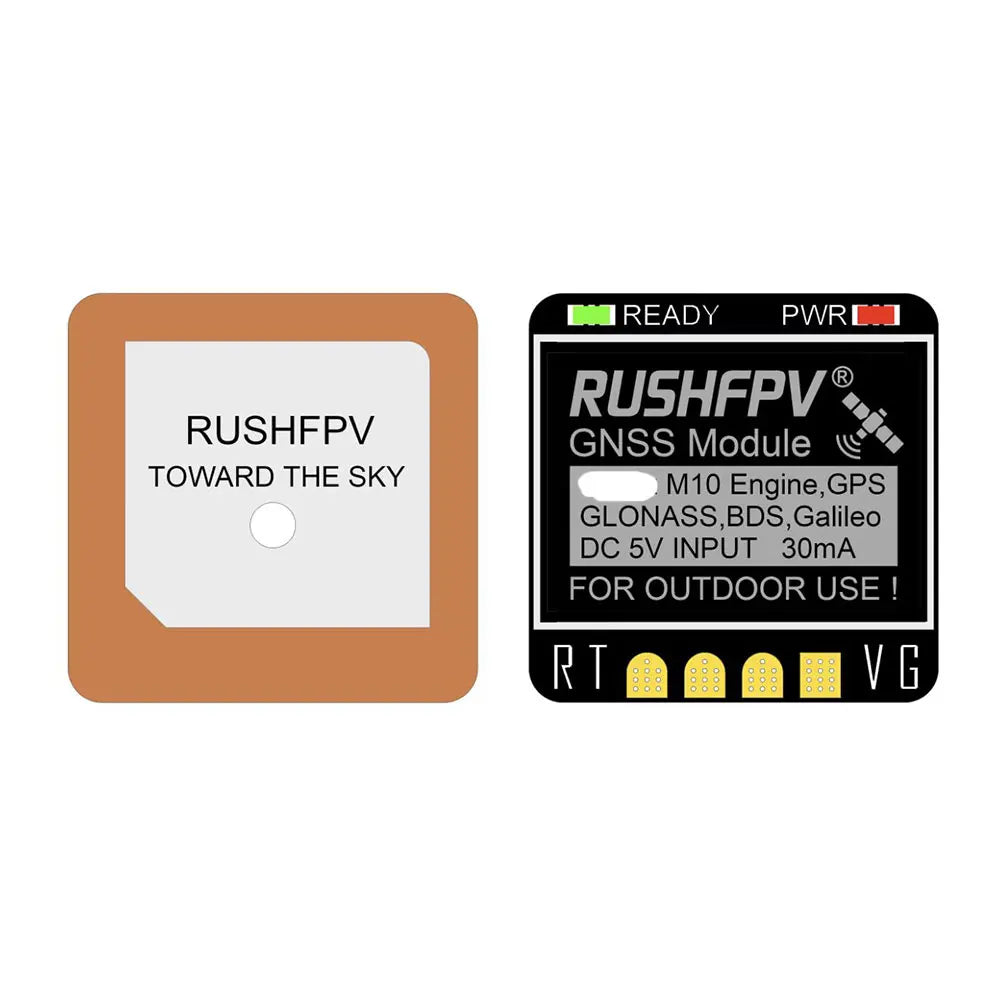

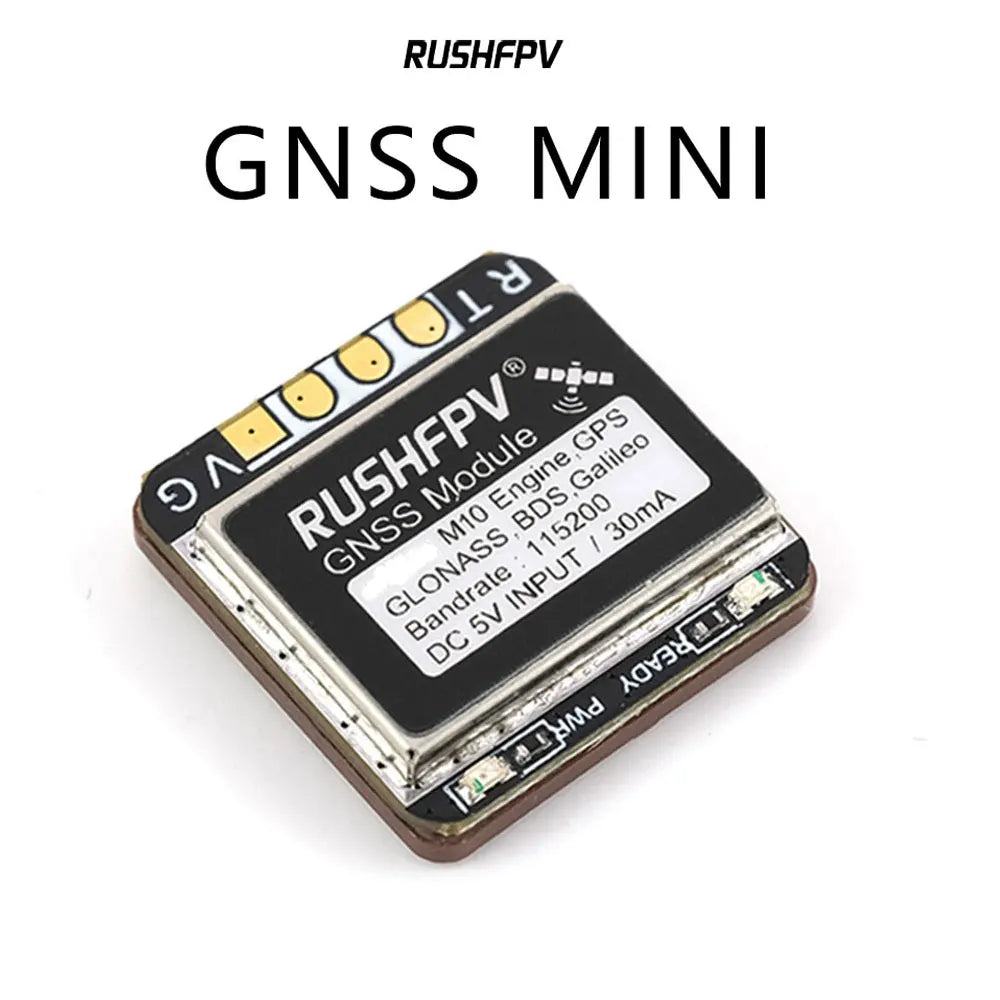

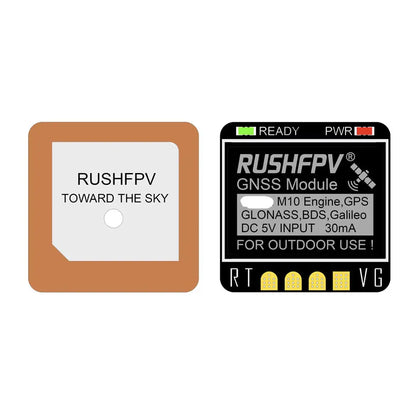

RUSHFPV GNSS MINI M10 UBX NMEA Dual Protocol GPS Module Built-in Ceramic Antenna for RC Airplane FPV Long Range

Receiving bands: GPSL 1, GLONASSL 1, BDSB 1, GALILEOE1, SBASL 1, QZSSL1
Receive channel: 72 CH
Receiving sensitivity: -162 dBm
Output protocol: UBX/NMEA
Baud rate: 115200 dps
Output refresh rate: 1 Hz - 10 Hz
Power input: 5V 30 mA
Speed accuracy: 0.05m/s
Positioning accuracy: 2D ACC 1.5m
Maximum working height: 500,000 m
Maximum movement speed: 500m/s

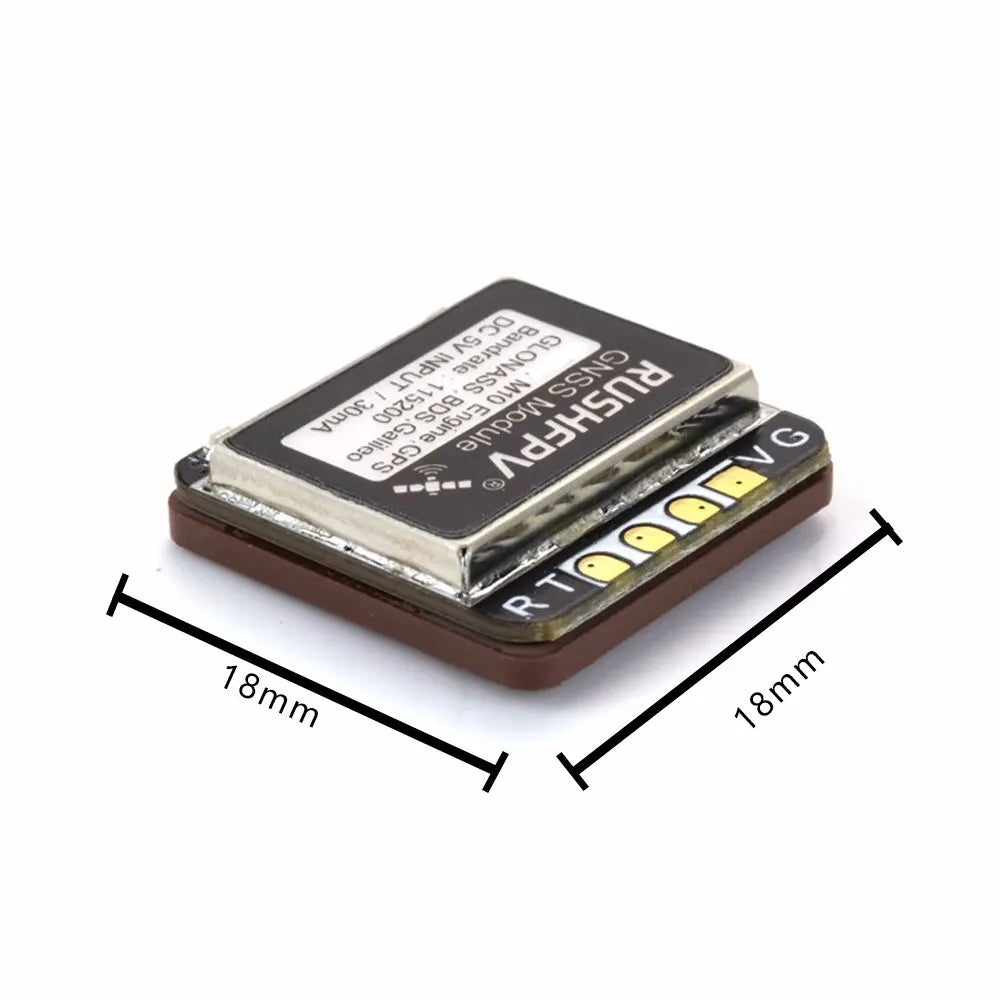

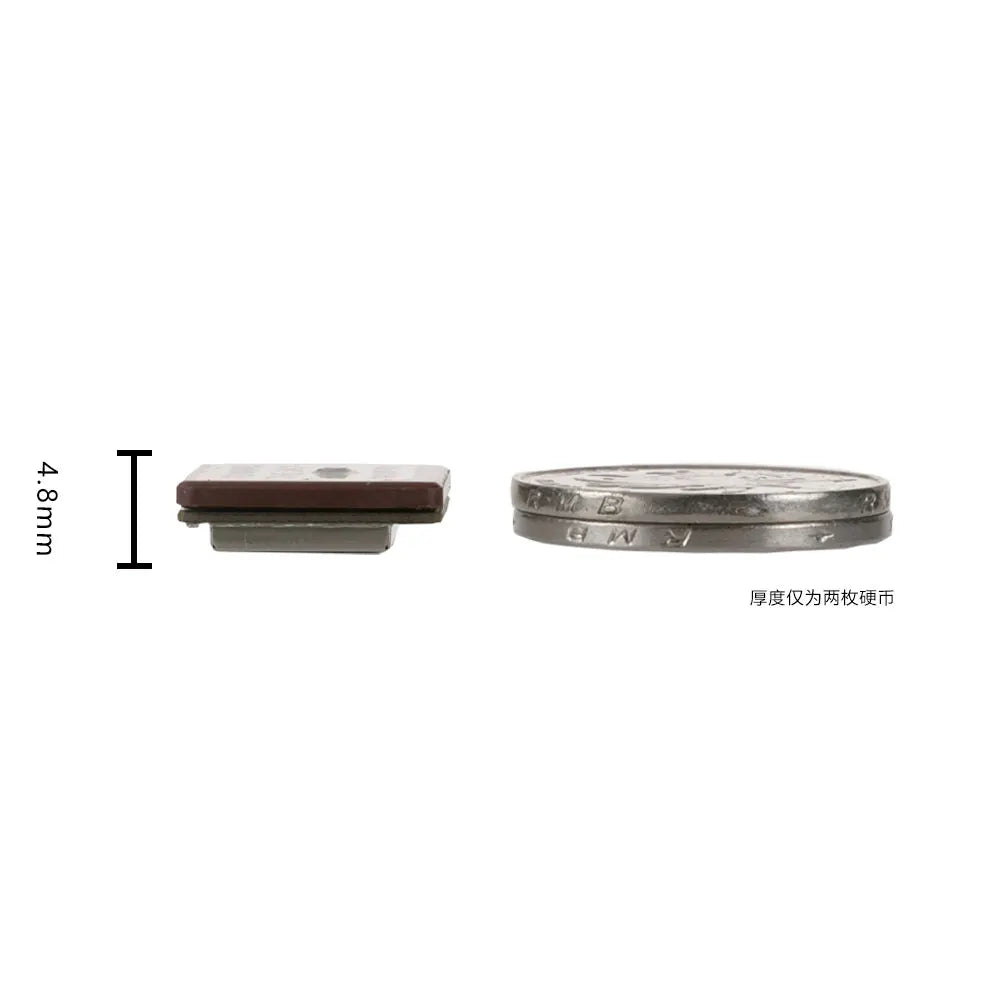

Dimensions: 18x18x4.8mm
Weight: 4.2g

Caution
Keep the ceramic antenna clear of metal and carbon fibre. For best reception, mount the GNSS antenna in a clear space using a bracket as far away from the VTX and R/C receiver antennas as possible.

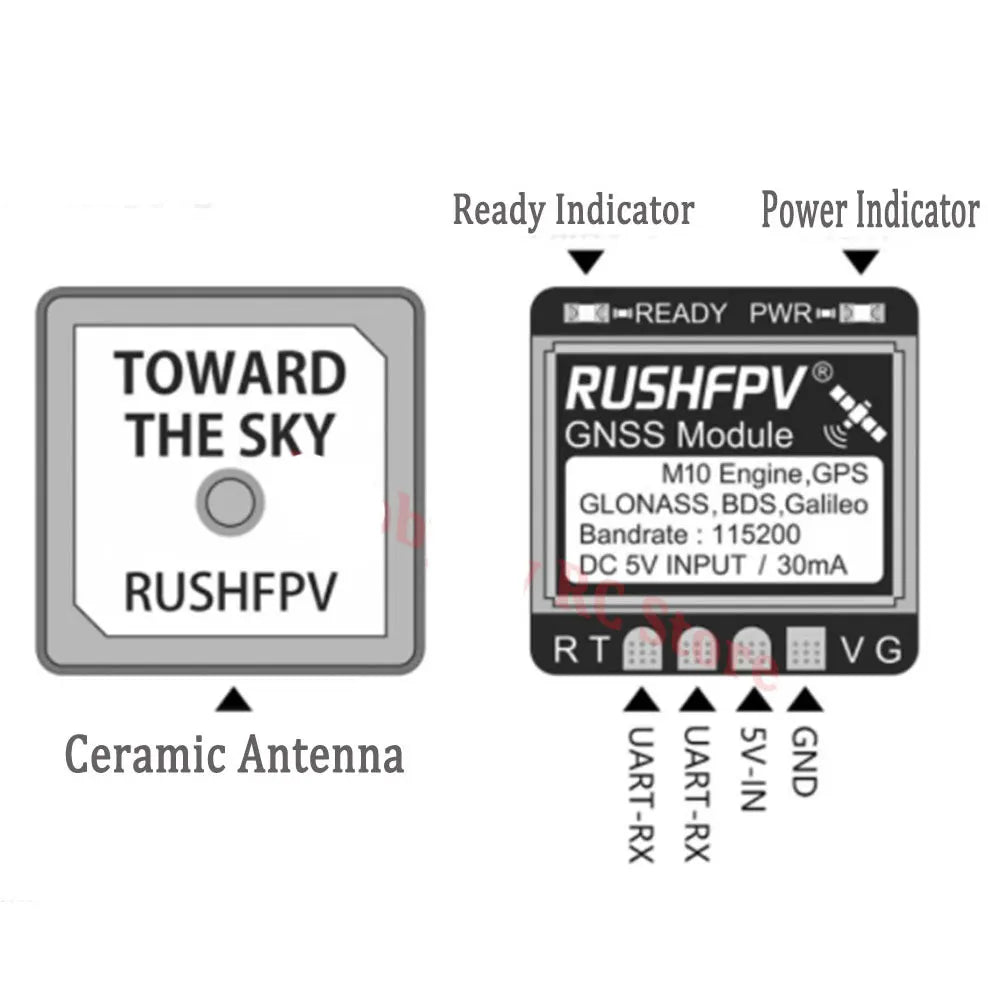

When connecting to the flight control, connect the GNSS module RX to the flight control TX and the module TX to the flight control RX.
The antenna is fragile and should not be hit or dropped.
The engraving marks on the ceramic antenna are the result of manual fine-tuning of the centre frequency to improve the performance of the antenna and are not a product defect.
