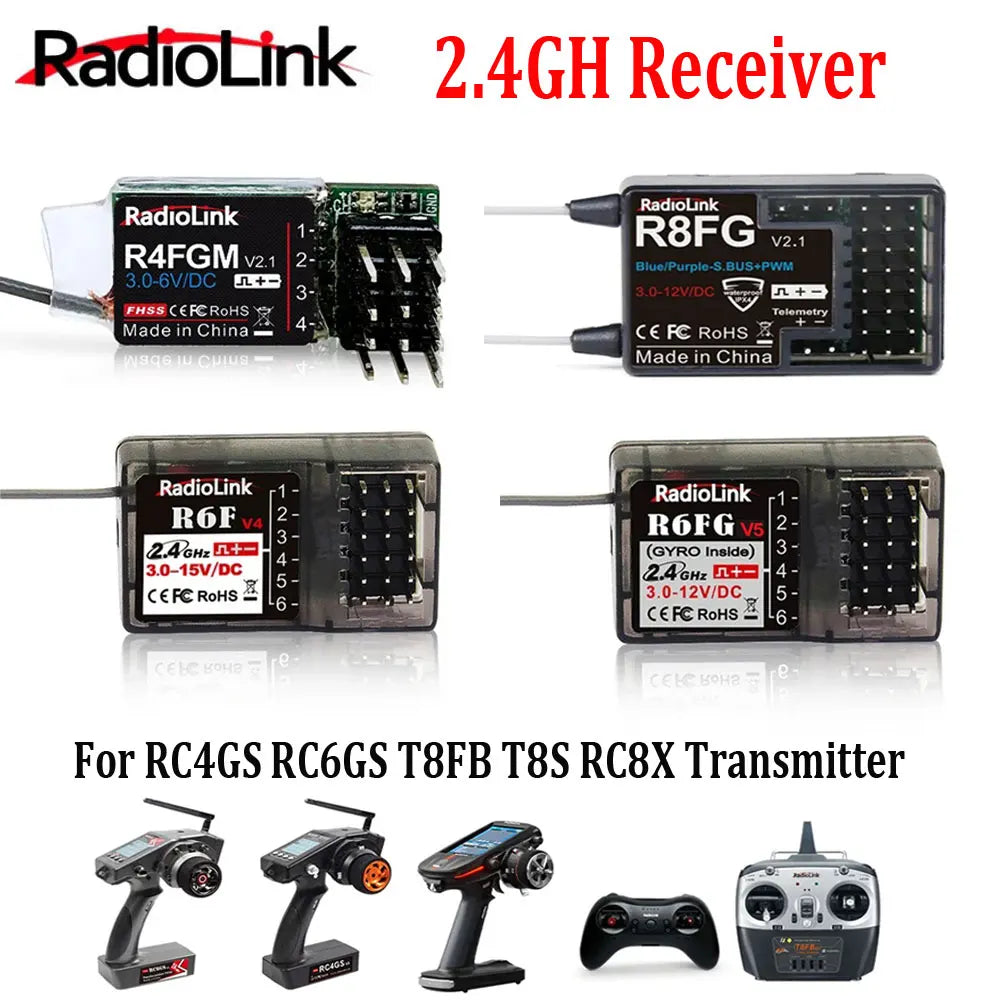

Radiolink 2.4GH R8FG R4FGM R6FG R6F Receiver Gyro for RC Car Boat Work for Transmitter RC4GS RC6GS T8FB T8S RC8X

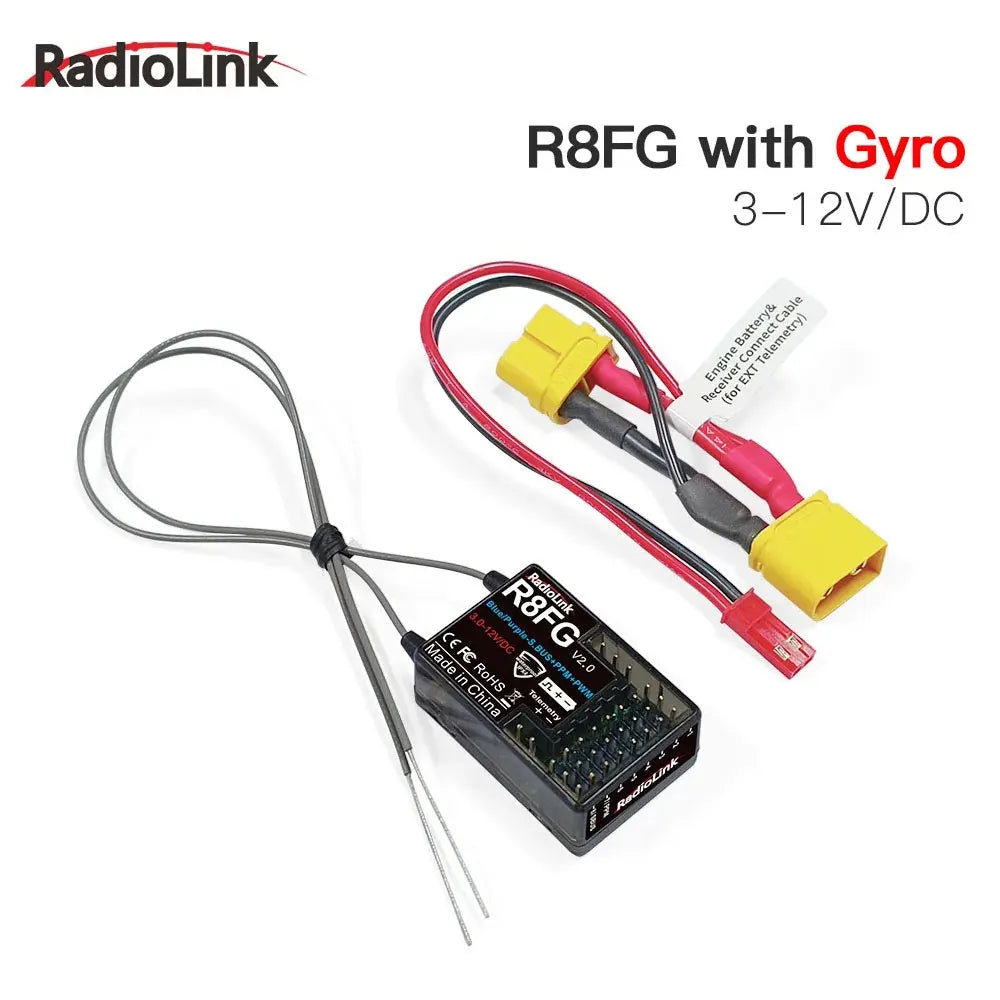

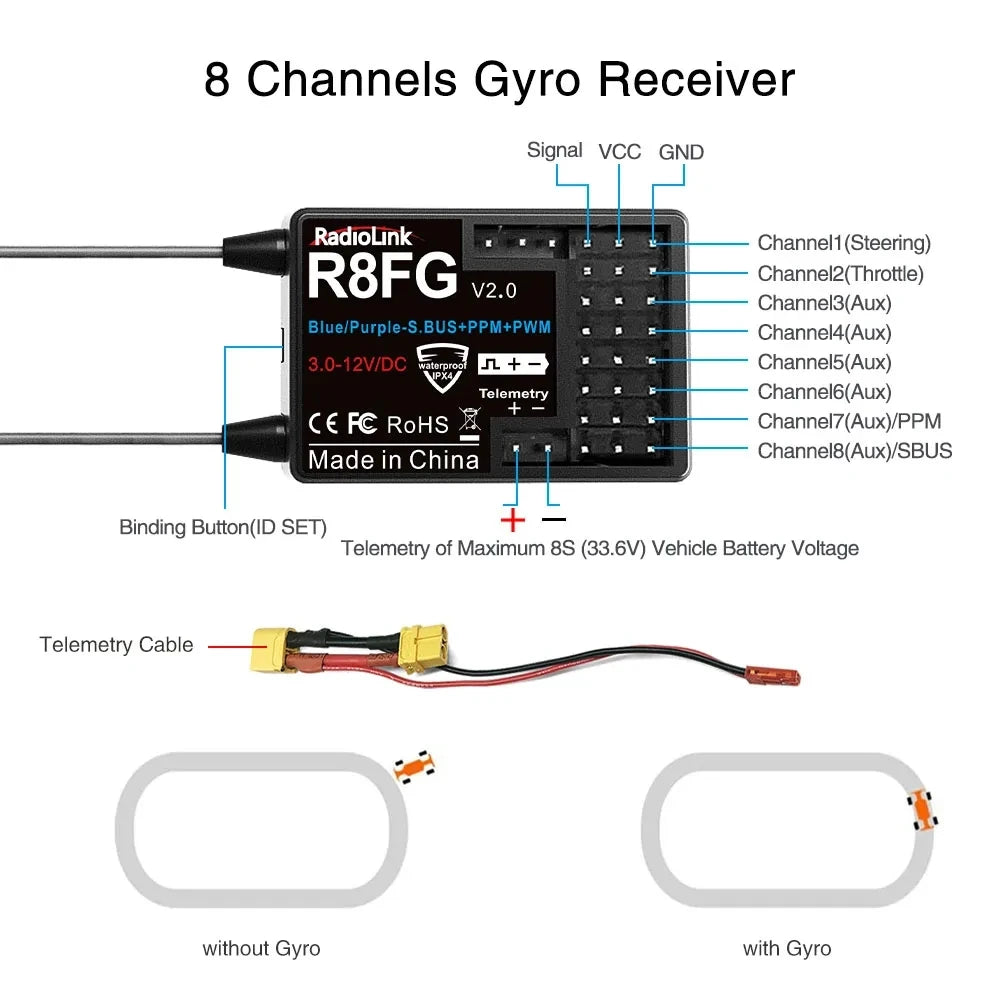

R8FG 8 Channels Receiver Features:

Excellent Anti-interference: With pseudo random FHSS algorithm, which makes R8FG with excellent anti-interference ability, control distance up to 1900 feet (600 meters).

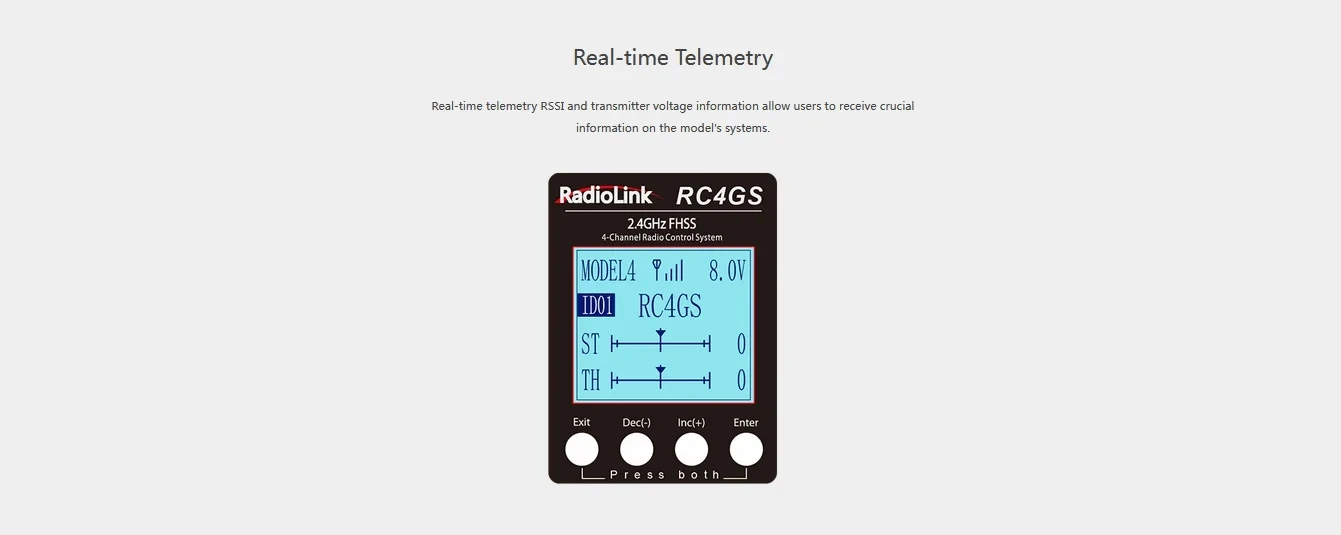

Real-time Telemetry: telemetry feature can provide real-time vital information like vehicle's battery voltage, RSSI signal and more, avoiding the battery over-discharge and damage.

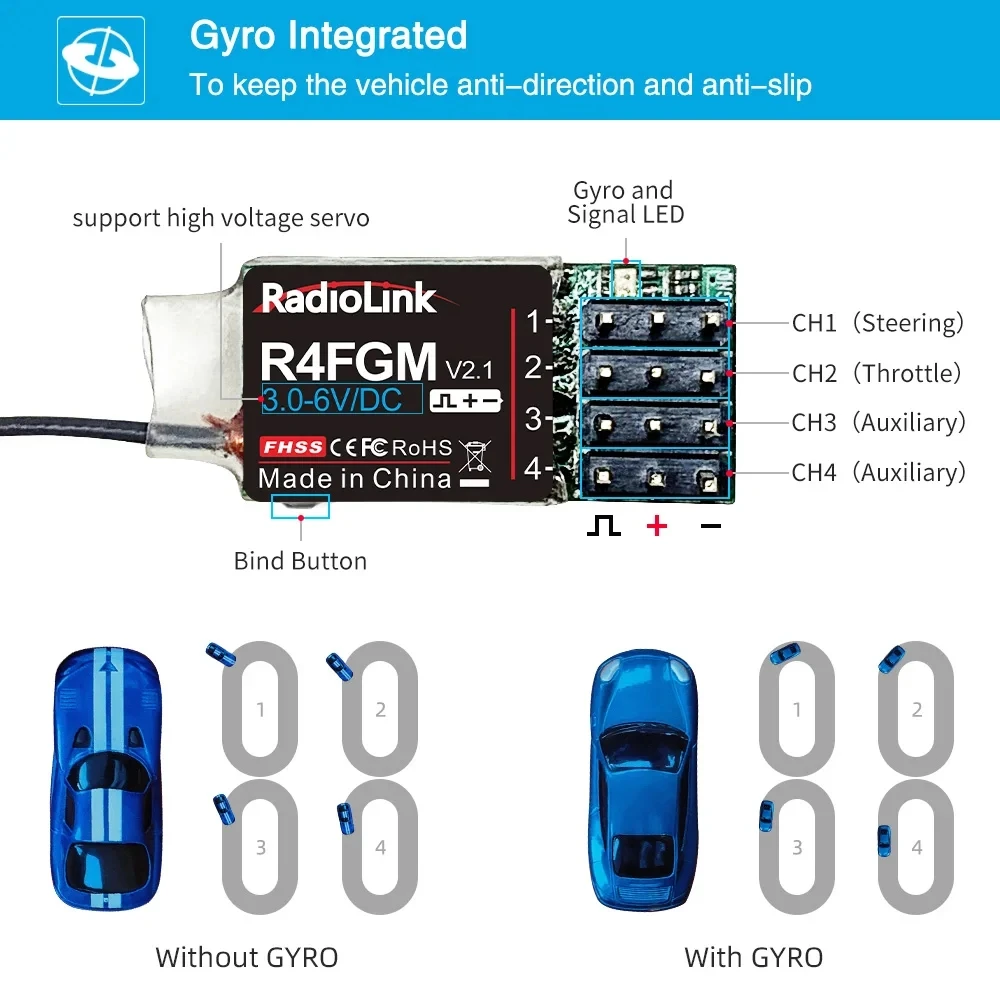

Integrated Gyro: built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.

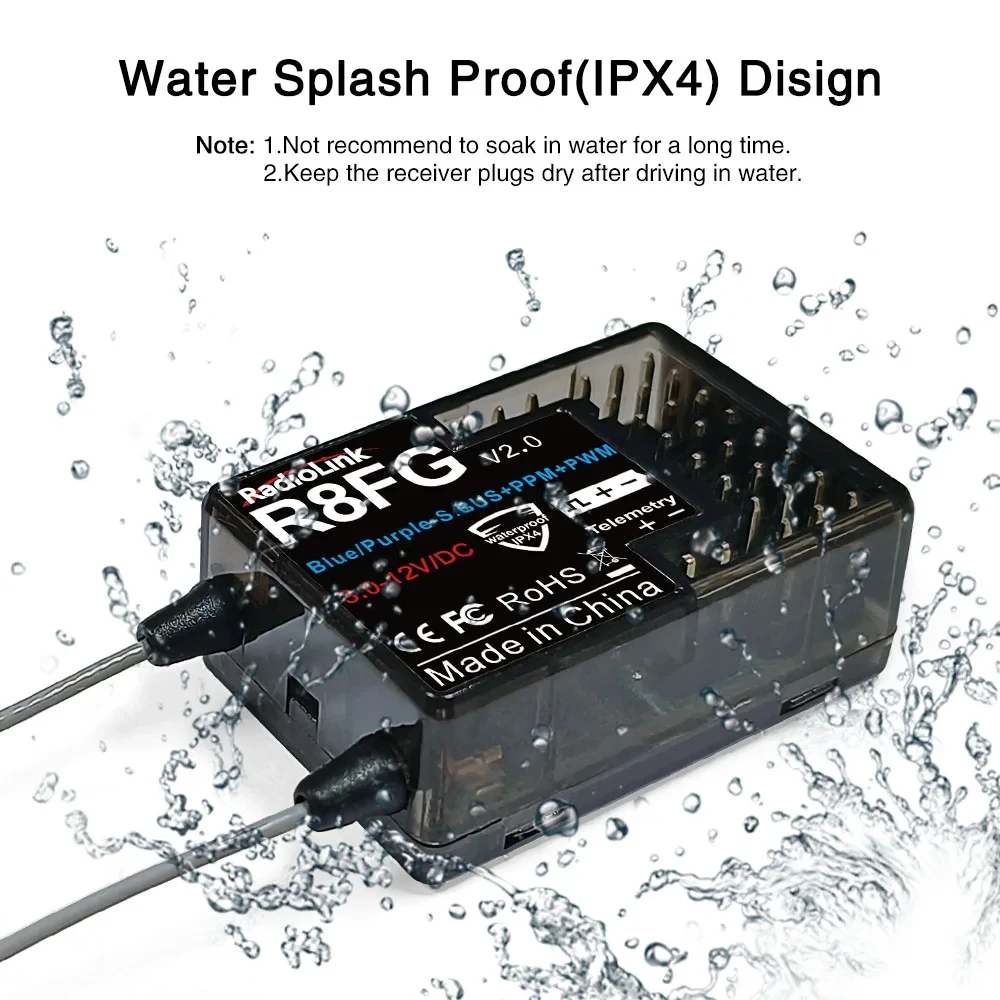

Waterproof: IPX4 can be protect receiver from water splash. Also with anti-polarity protection, not damage the receiver even you insert wrong polarity. 3-12v DC support high voltage servo.

Push to Bind: No need bind plug and any setting, only press bind button for 1 second after power up controller and receiver. High resolution ratio of 4096, stable signal and fast response.

Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity. 3-12v DC support high voltage servo.

Small Sizewith Compact Case: Only 35*24*13.5mm small size and 7g lightweight.

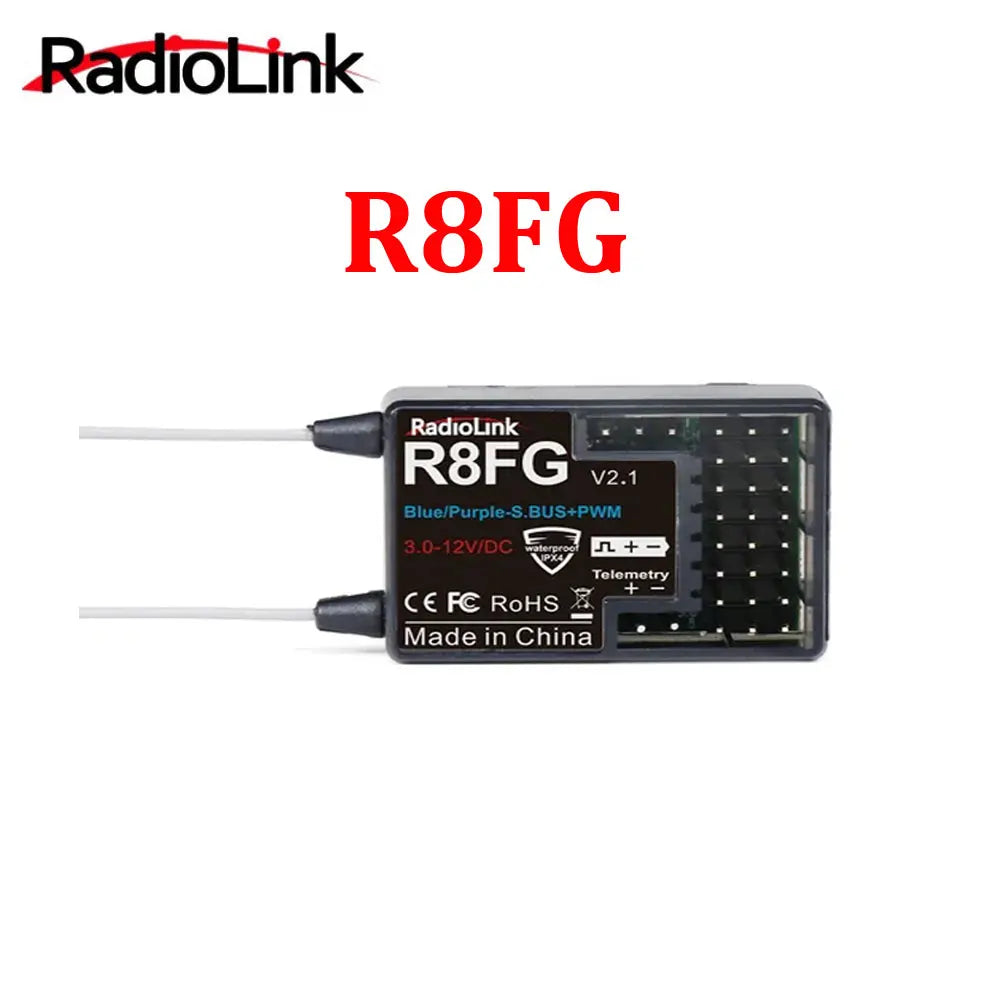

R8FG Receiver Specifications:

Channel: 8 channels

Version: V2.1. (R8FG_V2.1 support digital servo, the servo speed is 4ms or 3ms can be selected on RC8X V1.1.5.)

Operating Voltage:3-12V

Operating Current: 30mA

Control Distance: 600 meters

Signals: PWM/ SBUS&PWM/ PPM&PWM

Telemetry: Real-time built-in telemetry of model battery voltage(up 33.6V, 8S Lipo), RSSI, and receiver voltage

Gyro: Receiver with gyro integrated, customizable gyro sensitivity

Water Splash Proof: Yes, the waterproof grade is IPX4

Weight: 6g(0.21oz)

Size: 35*24*13.5mm

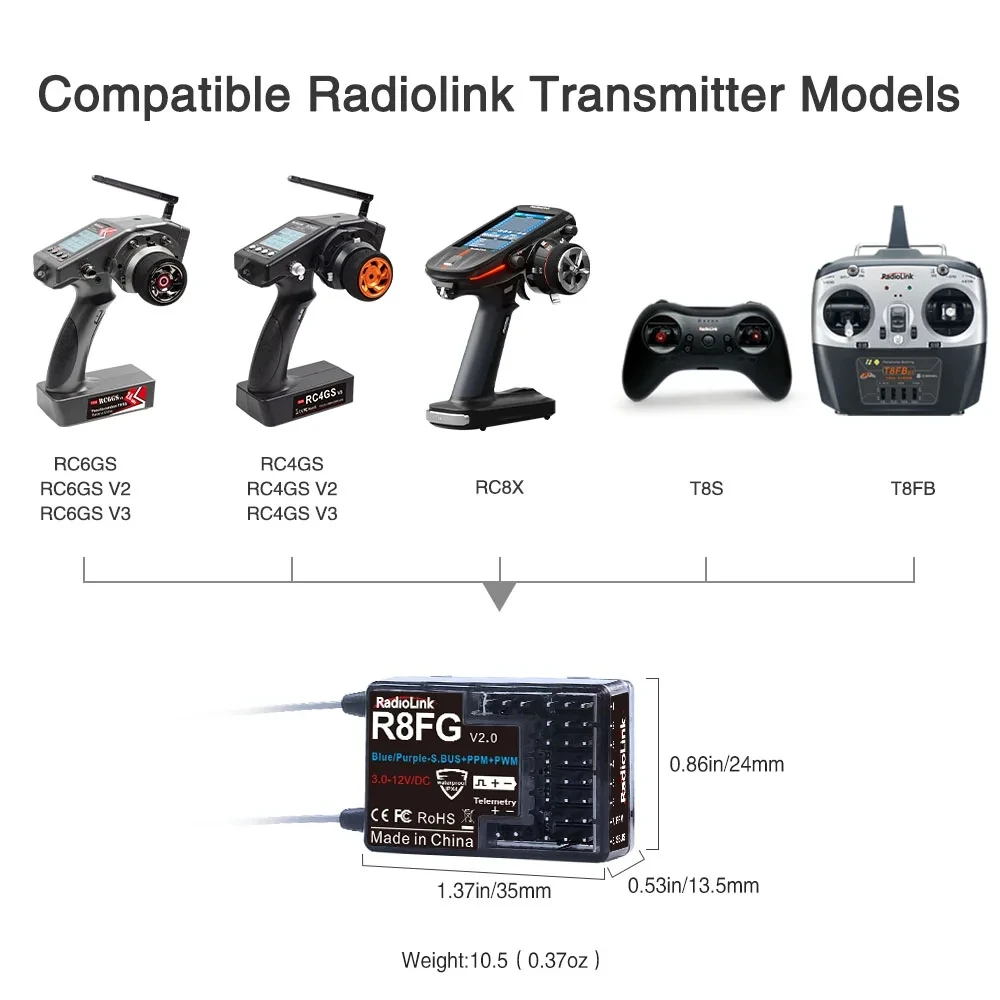

Compatible Transmitters: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/T8FB/T8S

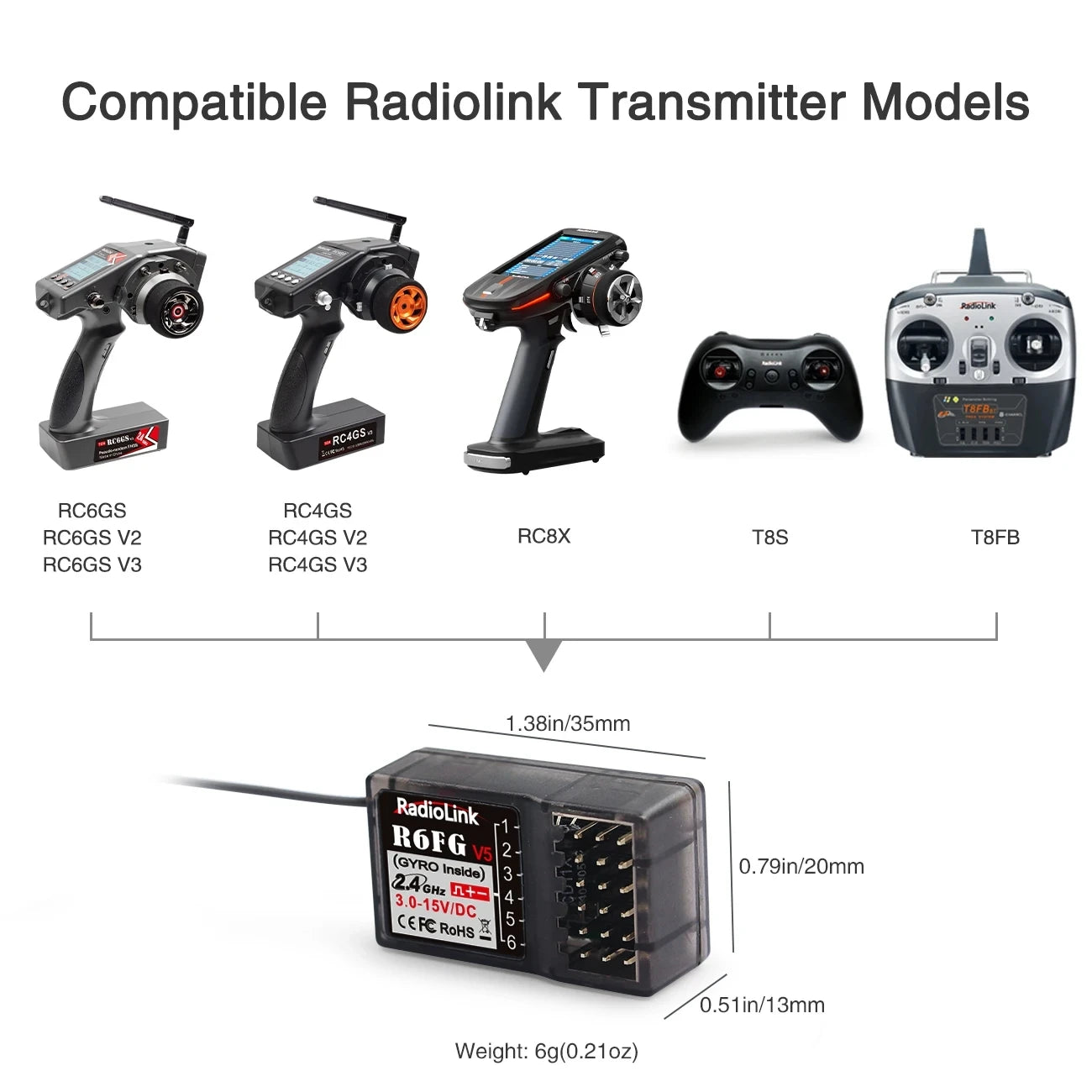

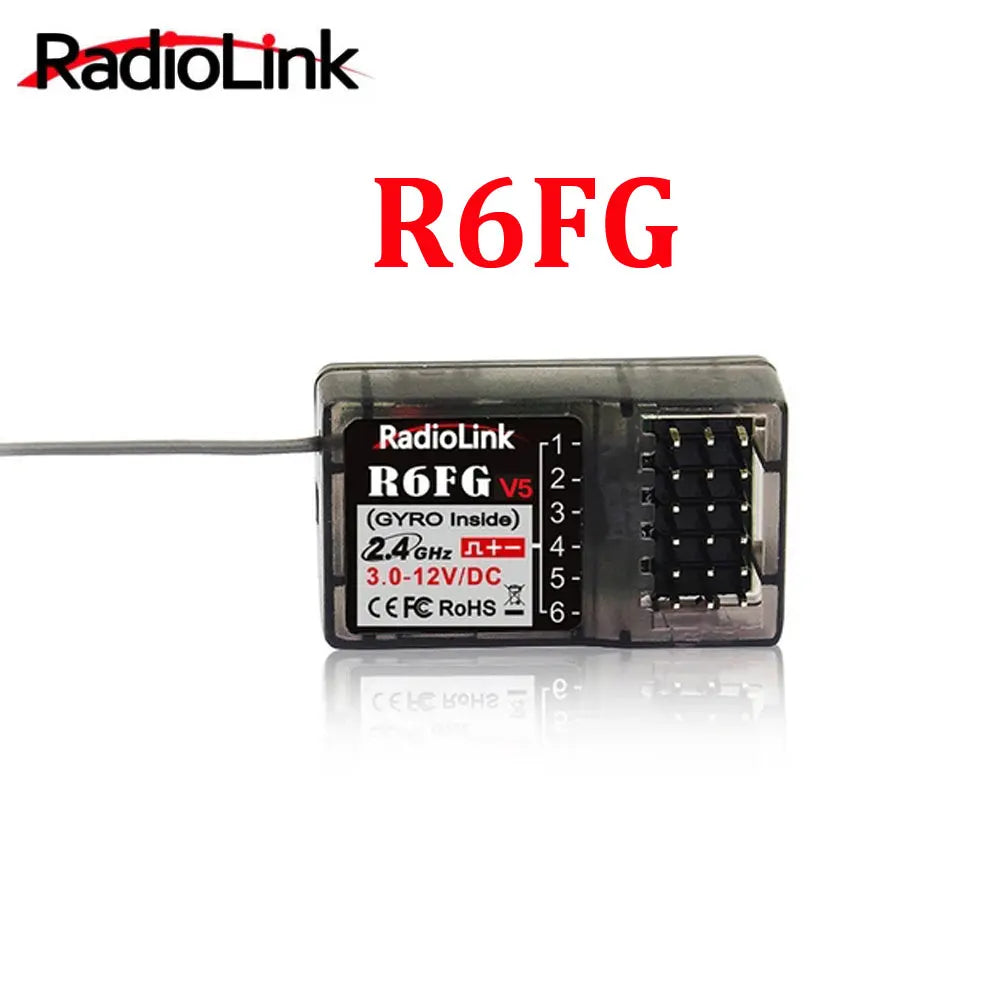

R6FG 6CH Receiver Features:

【Excellent Anti-interference】: Pseudo random algorithm FHSS communication technology makes R6FG with stable signal and outstanding range over 1300 feet (400 meters).

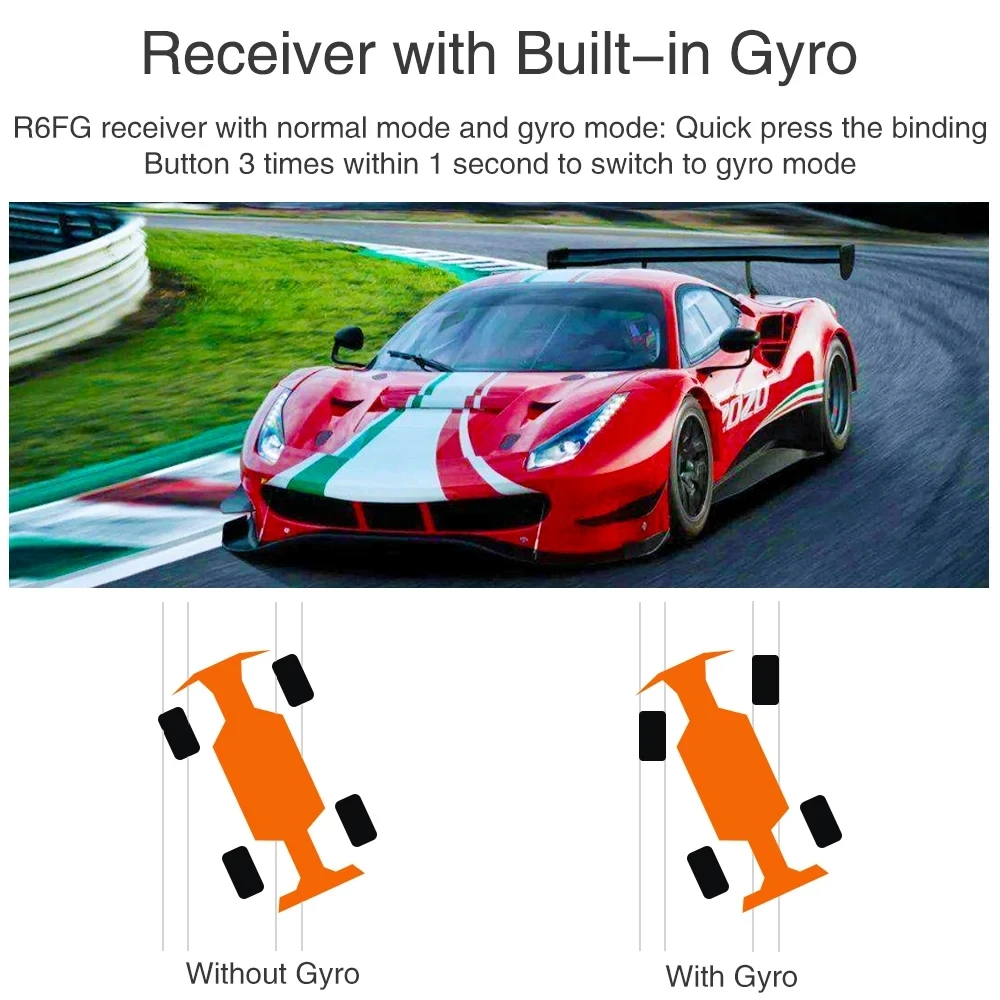

【Integrated Gyro】: Built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.

【Superb Fast Response】: High resolution ratio of 4096, stable signal output to provide a fast response for rock crawler, RC truck,tank, buggy, drifting, etc.

【Compact Case】: Small size its save space effectively and works well for most of rc car receiver's box.

【Simple Bind】: Easy-to-use bind button, only 1 second to bind with your radio RC4GS V3/RC4GS V2/RC4GS/RC6GS V3/RC6GS V2/RC6GS/T8S/T8FB/RC8X

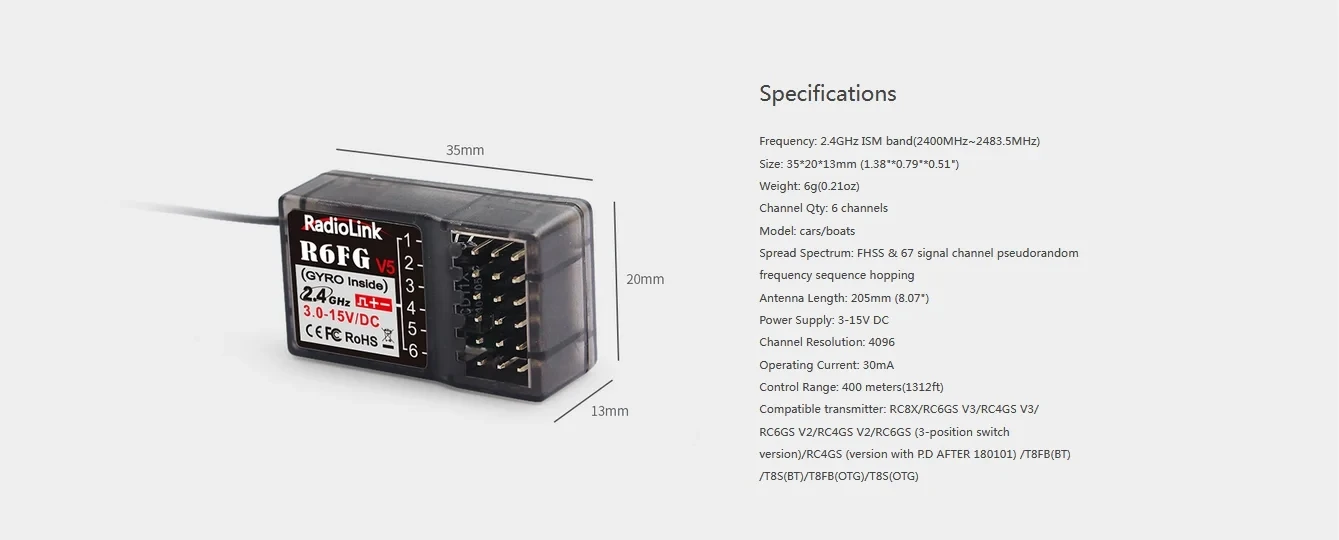

R6FG Receiver Specifications:

Channels: 6

Gyro Inside: Yes

Signal Output: PWM, 2.4GHz

Control Distance: More than 400 meters

Model Application: RC car/boat

Spread Spectrum: FHSS

Channel Resolution: 4096

Operating Voltage: 3-15V DC

Operating Current: 30mA

RF Power: <10dbm

Antenna Length: 20.5cm

Size: 3.5*2*1.3cm

Weight: 6g

Compatible Transmitter: RC4GS V3/RC4GS V2/RC4GS/RC6GS V3/RC6GS V2/RC6GS/T8S/T8FB/RC8X

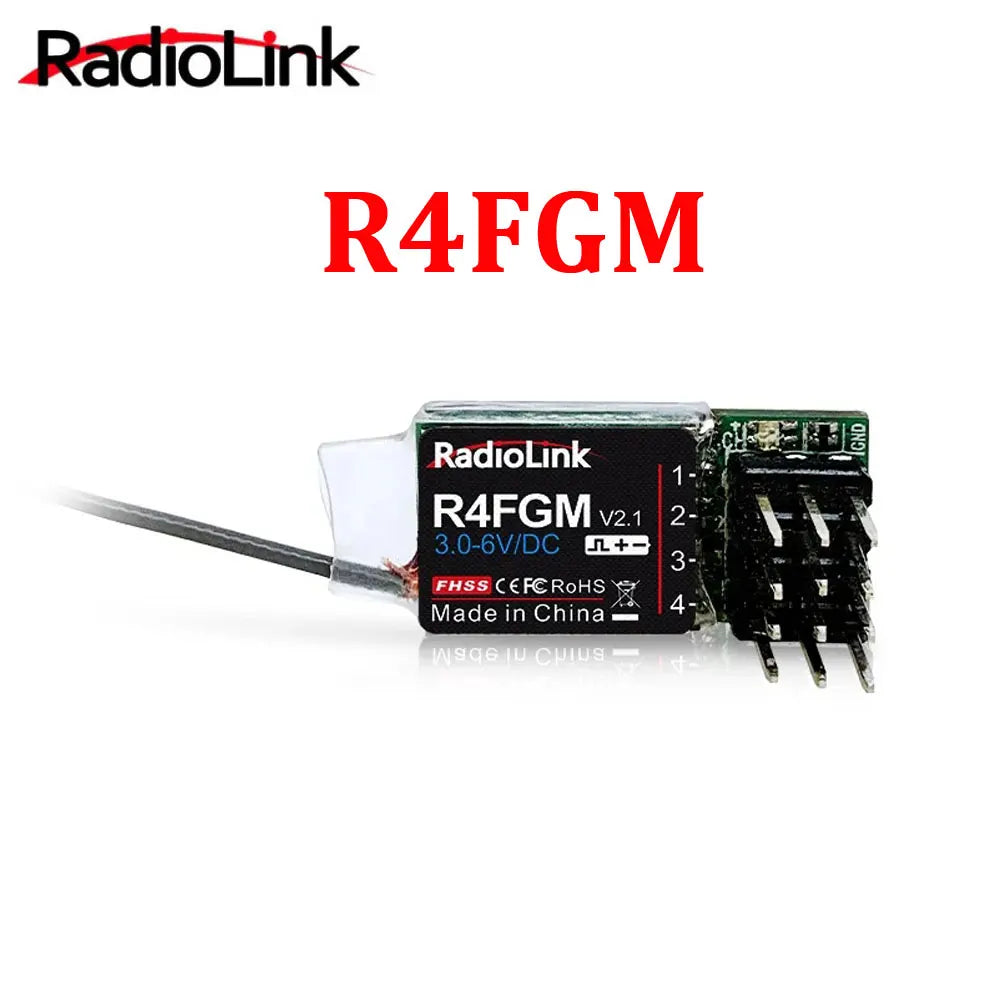

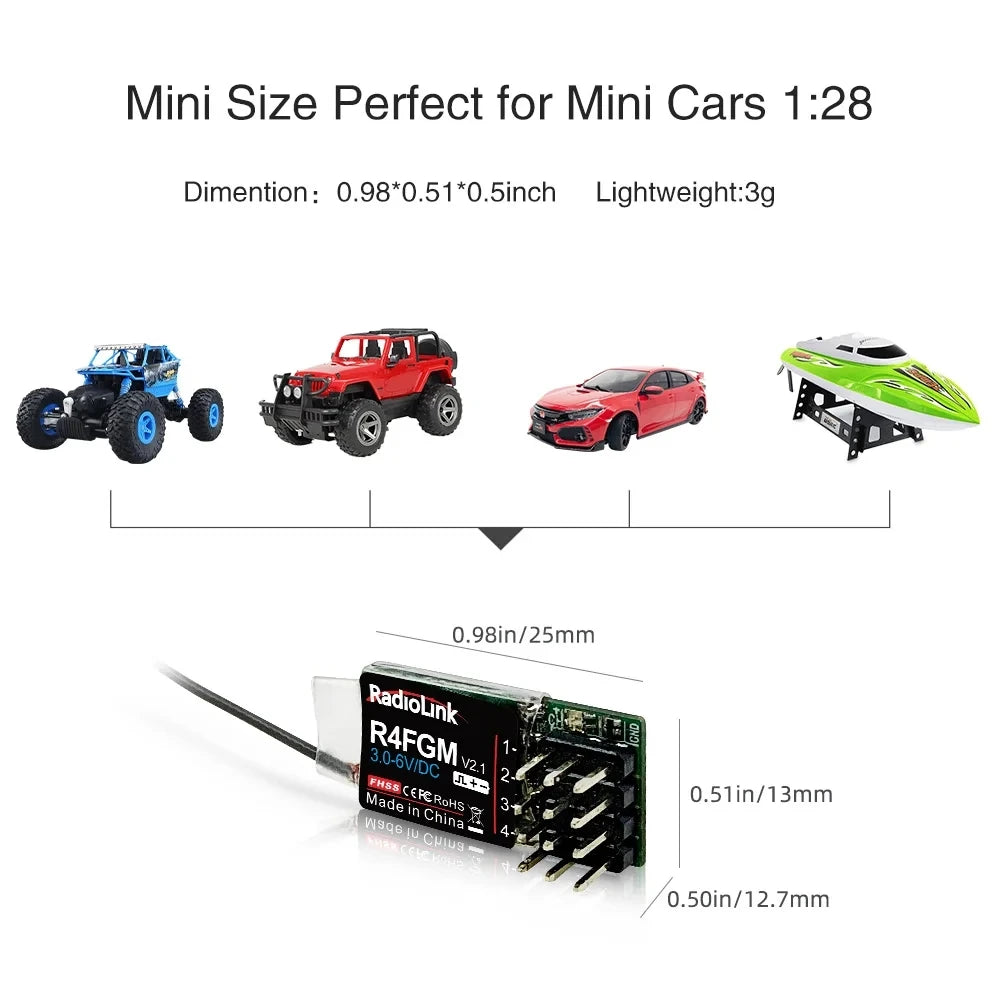

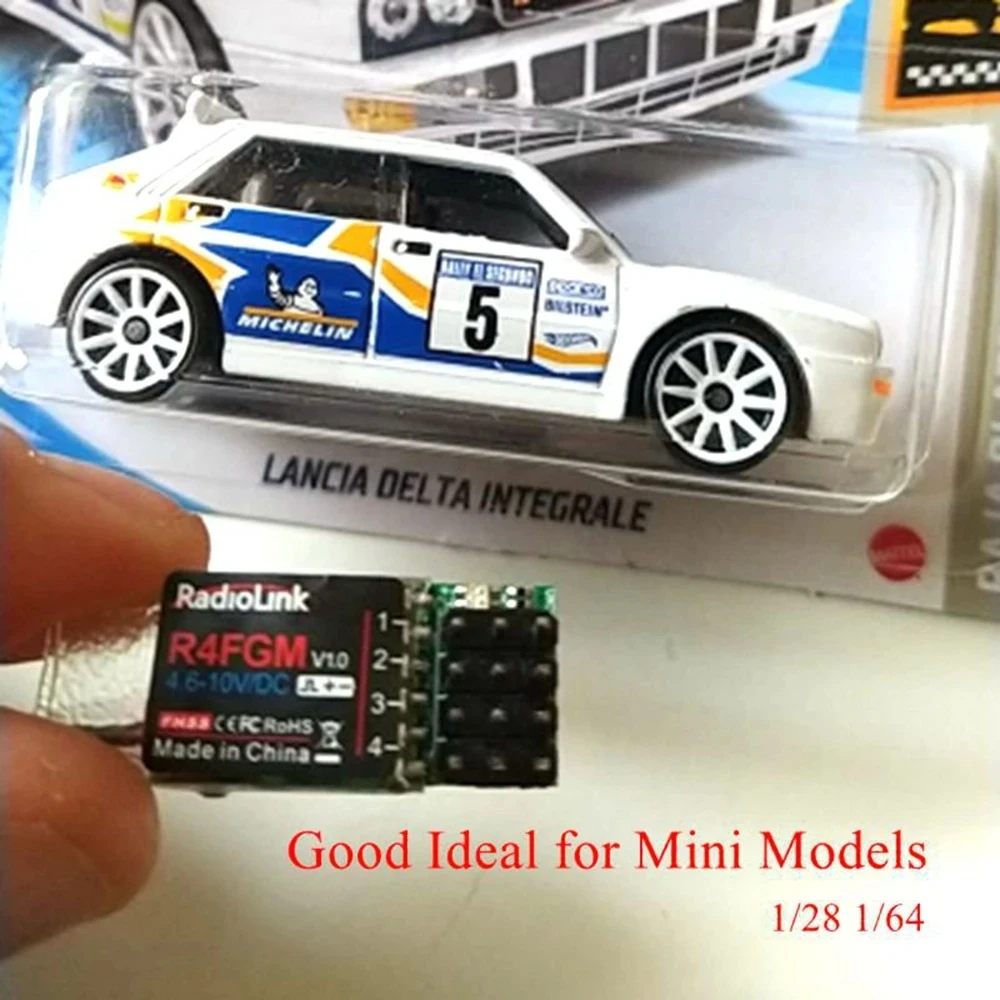

R4FGM Receiver Specifications:

Channels: 4

Version: V2.1. (R4FGM_V2.1 support digital servo, the servo speed is 4ms or 3ms can be selected on RC8X V1.1.5.)

Gyro Inside: Yes

Signal Output: PWM, 2.4GHz

Control Distance: More than 400 meters

Model Application: RC car/boat

Spread Spectrum: FHSS

Channel Resolution: 4096

Operating Voltage: 3-6V DC

Operating Current: 30mA

RF Power: <10dbm

Antenna Length: 20.5cm

Size: 2.5*1.3cm

Weight: 6g

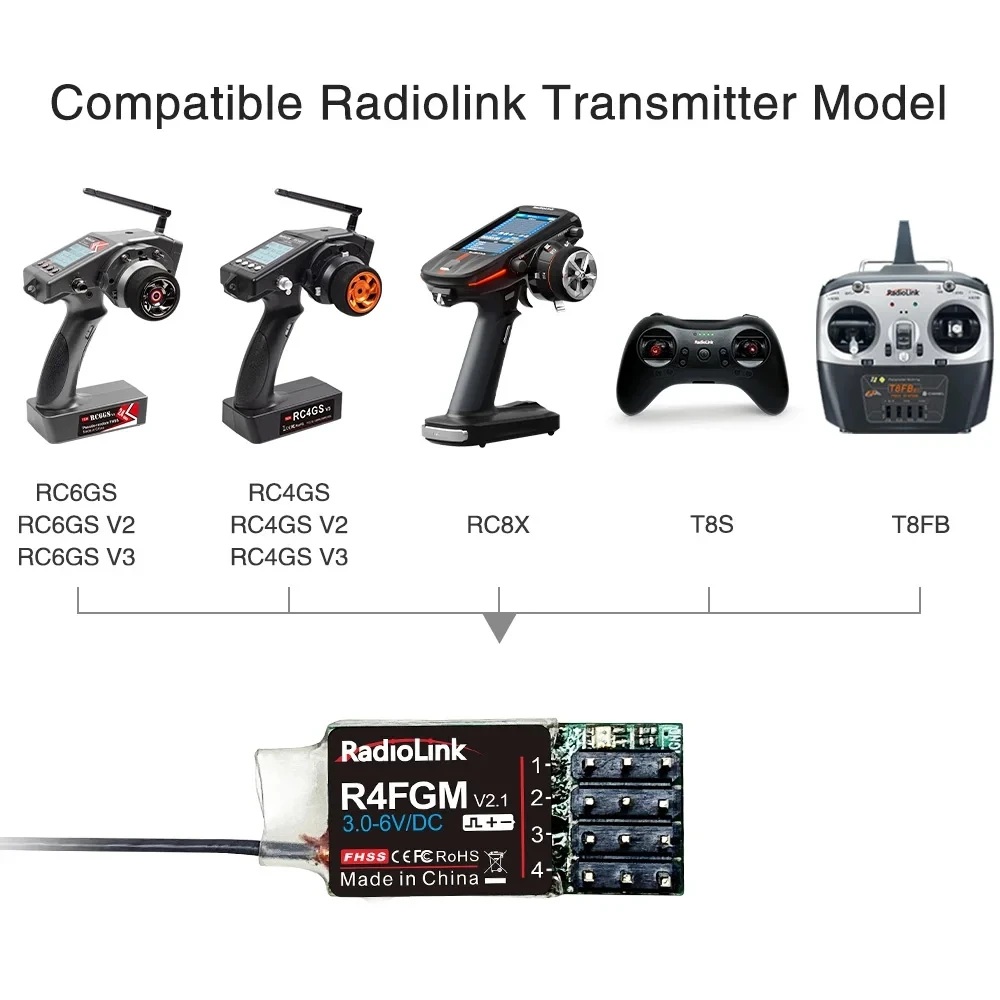

Compatible Transmitter:RC4GS V3/RC4GS V2/RC4GS/RC6GS V3/RC6GS V2/RC6GS/T8S/T8FB/RC8X

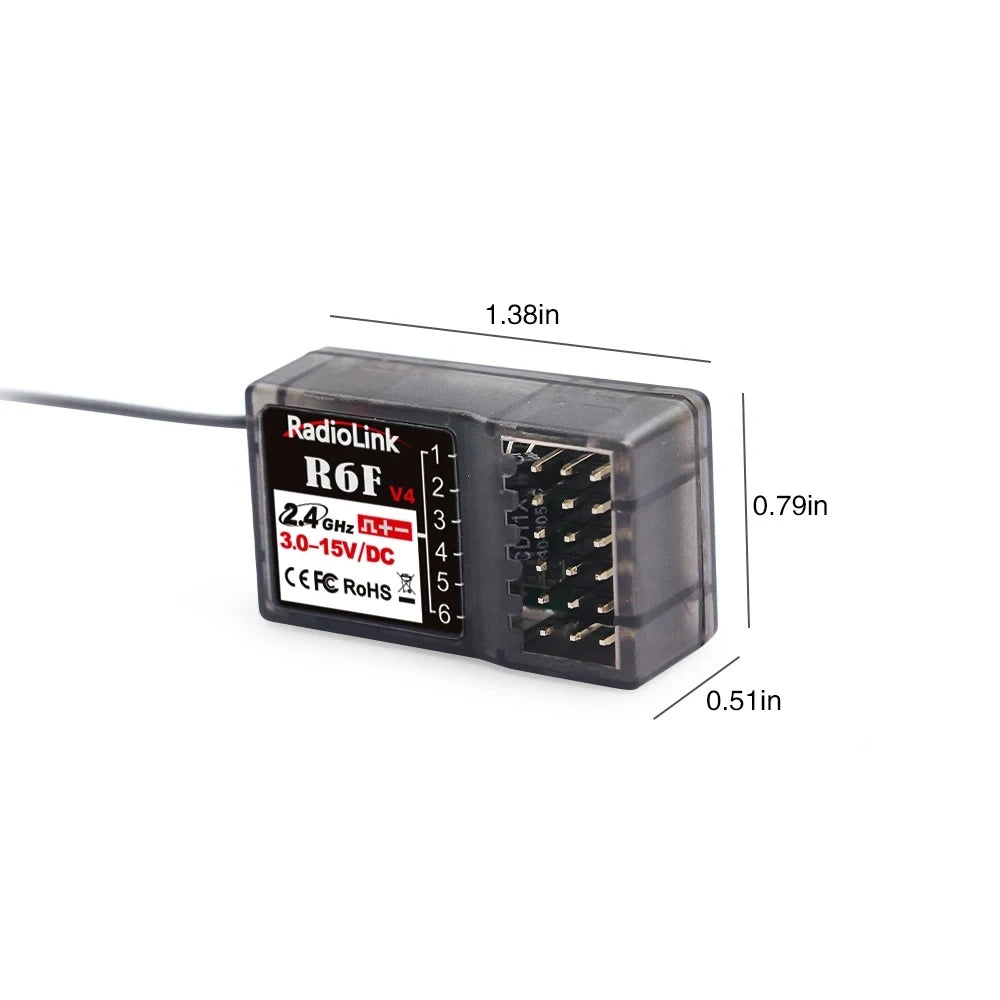

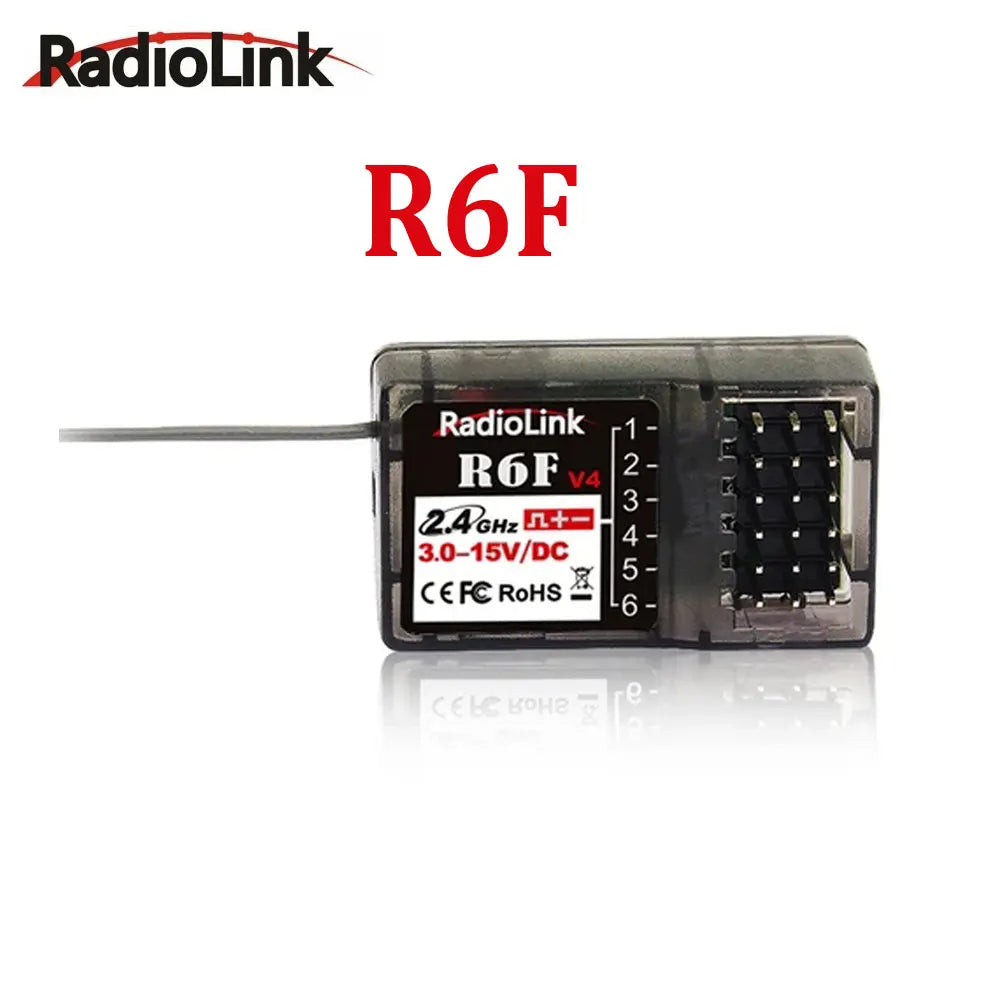

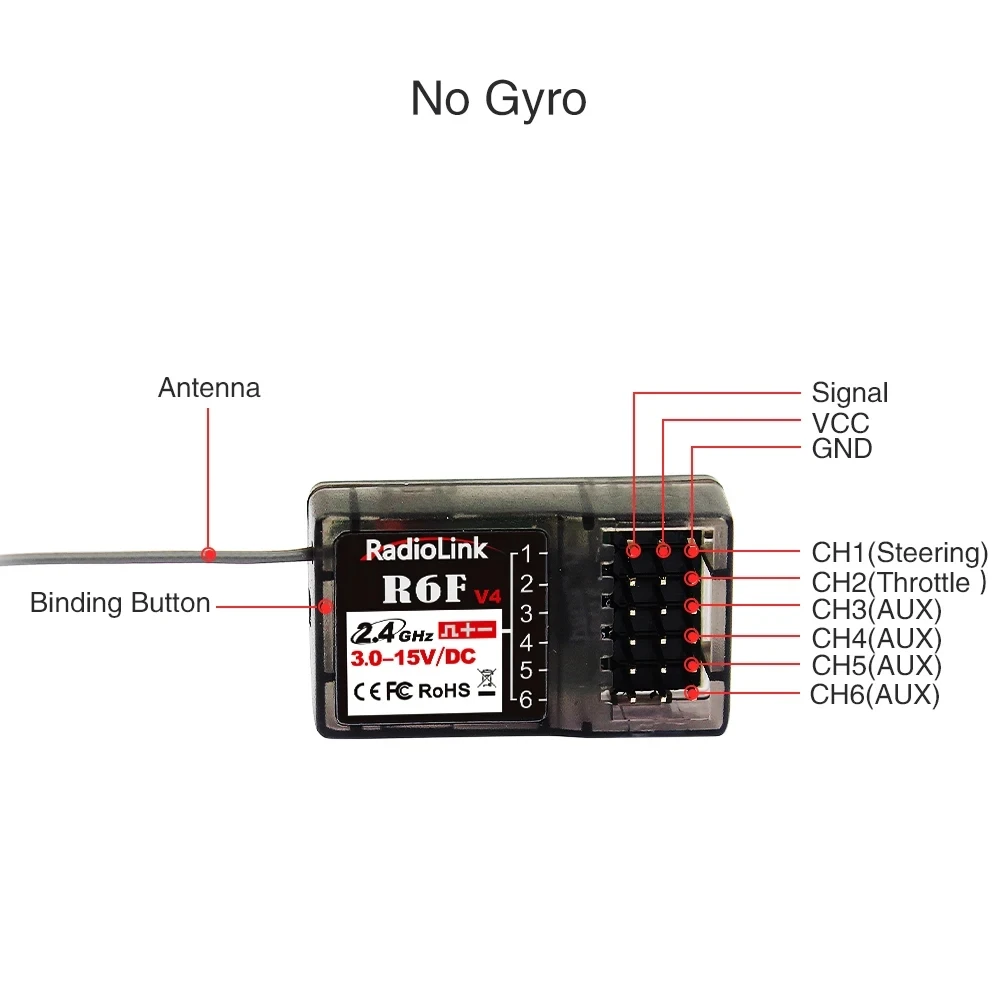

R6F Receiver Specifications:

Channels: 6

Gyro Inside: No

Signal Output: PWM, 2.4GHz

Control Distance: More than 400 meters

Model Application: RC car/boat

Spread Spectrum: FHSS

Operating Voltage: 3.0-15V DC

Operating Current: 30mA

RF Power: <10dbm

Antenna Length: 20.5cm

Size: 3.5*2*1.3cm

Weight: 6g

Compatible Transmitter:RC4GS V3/RC4GS V2/RC4GS/RC6GS V3/RC6GS V2/RC6GS/T8S/T8FB/RC8X

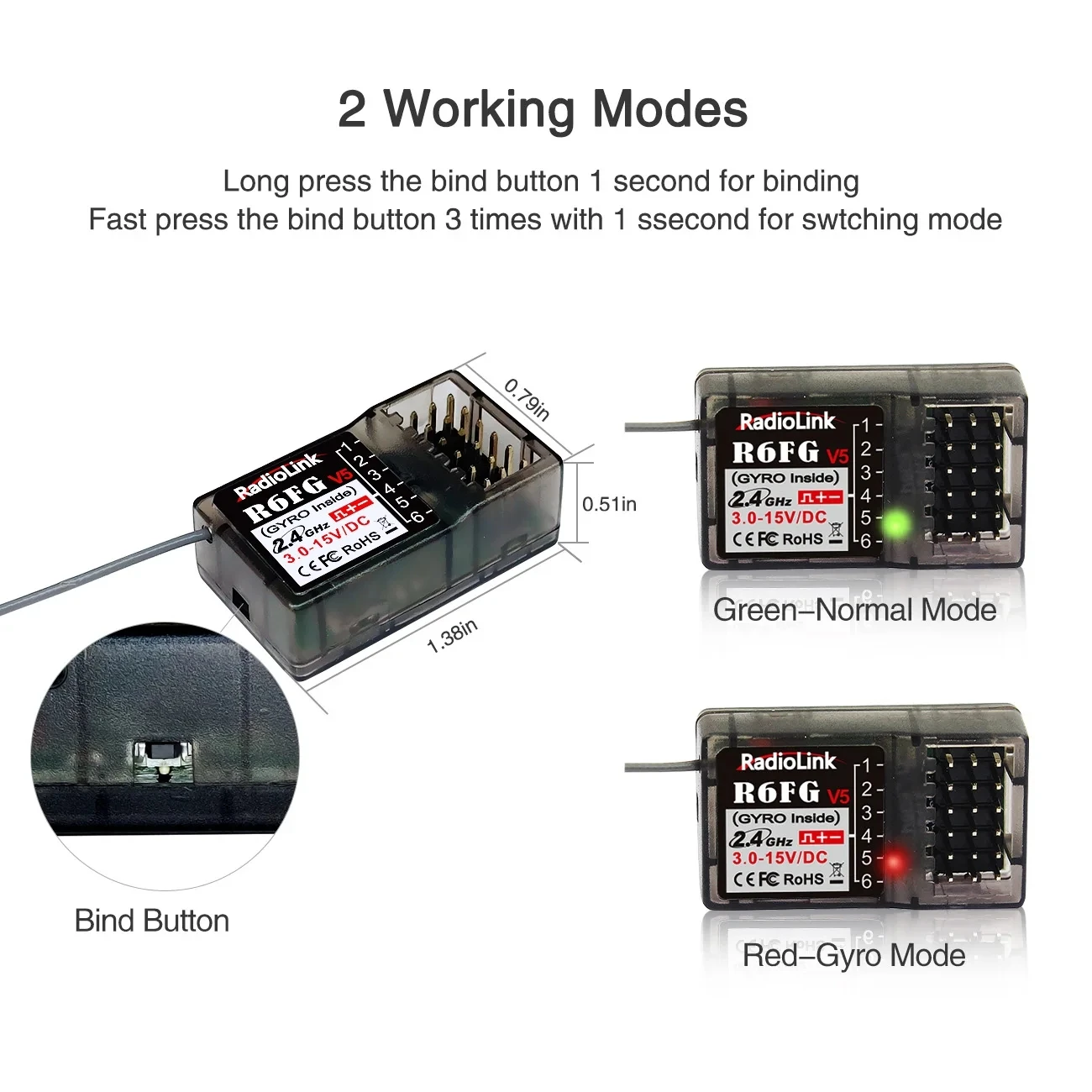

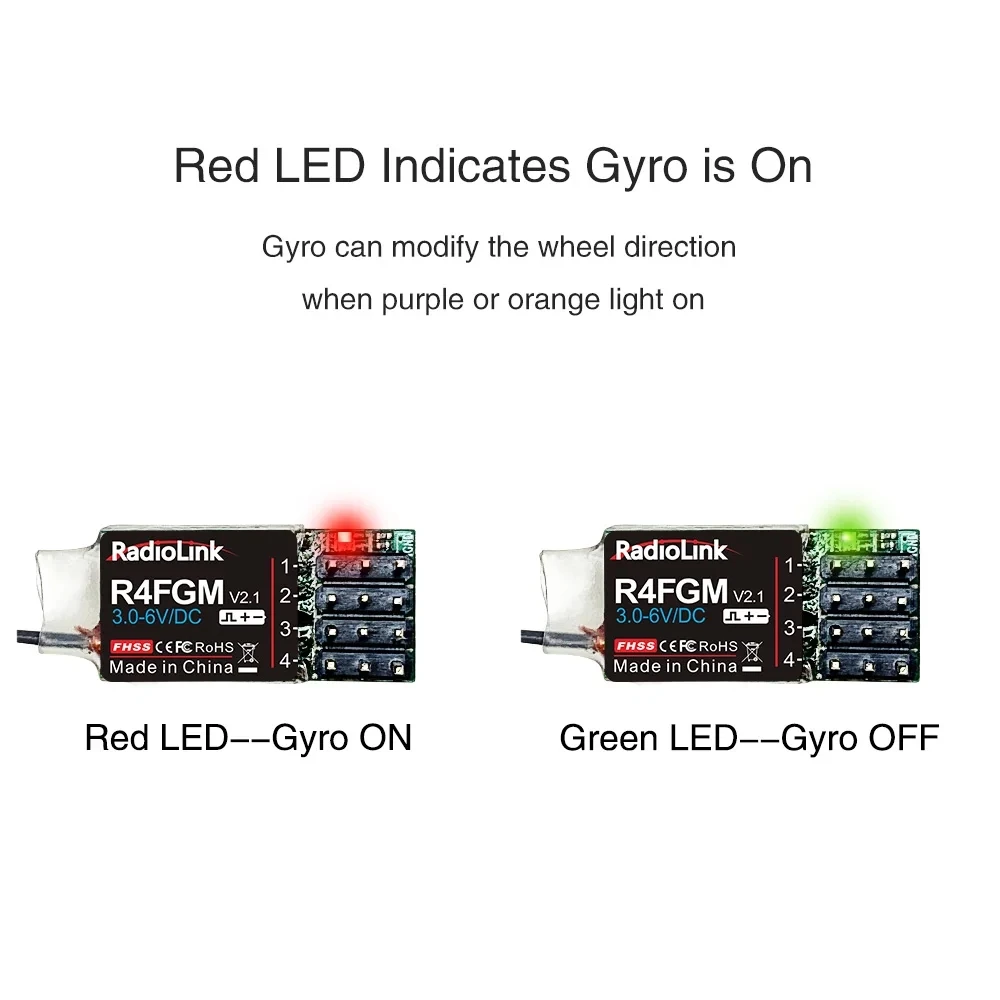

Attention:Receiver with gyro(R7FG,R6FG,R4FGM) default have not turn on the gyro function. Make sure the R7FG keep motionless when power on it, because the R7FG will do the self-test. R7FG with two indicate LED, green LED on indicate normal working mode while both green and red LED on indicate gyro function working mode.
